 Multiple Choice QuestionsMultiple Choice Questions

Advertisement
11.

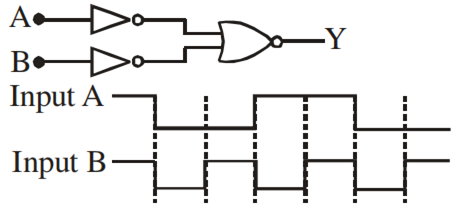

The logic circuit shown below has the input waveforms ‘A’ and ‘B’ as shown. Pick out the correct output waveform.


output is

302 Views

12.

A working transistor with its three legs marked P, Q and R are tested using a multimeter. No conduction is found between P and Q. By connecting the common (negative) terminal of the multimeter to R and the other (positive) terminal of P or Q, some resistance is seen on the multimeter. Which of the following is true for the transistor?

  • It is an n-p-n transistor with R as base

  • It is a p-n-p transistor with R as collector

  • It is a p-n-p transistor with R as emitter

  • It is a p-n-p transistor with R as emitter

399 Views

13.

In the circuit below, A and B represent two inputs and C represents the output. The circuit represents

  • NOR gate

  • AND gate

  • NAND gate

  • NAND gate

308 Views

14.

If in a p-n junction diode, a square input signal of 10V is applied as shown Then the output signal across RL will be

698 Views

Advertisement
15.

For the given uniform square lamina ABCD, whose centre is O,

  • square root of 2 space straight I subscript AC space equals space straight I subscript EF
  • IAD = 3IEF

  • IAC = IEF

  • IAC = IEF

388 Views

16.

Carbon, silicon and germanium have four valence electrons each. At room temperature which one of the following statements is most appropriate?

  • The number of free conduction electrons is significant in C but small in Si and Ge

  • The number of free conduction electrons is negligibly small in all the three

  • The number of free electrons for conduction is significant in all the three

  • The number of free electrons for conduction is significant in all the three

169 Views

17.

A thermocouple is made from two metals, Antimony and Bismuth. If one junction of the couple is kept hot and the other is kept cold then, an electric current will

  • flow from Antimony to Bismuth at the cold junction

  • flow from Antimony to Bismuth at the hot junction

  • flow from Bismuth to Antimony at the cold junction

  • flow from Bismuth to Antimony at the cold junction

216 Views

18.

A solid which is transparent to visible light and whose conductivity increases with temperature is formed by

  • Metallic binding

  • Ionic binding

  • Covalent binding

  • Covalent binding

204 Views

Advertisement
19.

If the ratio of the concentration of electrons that of holes in a semiconductor is 7 /5 and the ratio of currents is 7/4, then what is the ratio of their drift velocities?

  • 4/7

  • 5/8

  • 4/5

  • 4/5

299 Views

20.

In a common base mode of a transistor, t collector current is 5.488 mA for an emit current of 5.60 mA. The value of the base current amplification factor (β) will be

  • 48

  • 49

  • 50

  • 50

367 Views
